Material: HSS M2
For hard metal tapping, such as stainless steel, aluminum alloy, carbon steel, copper, wood, PVC, plastic etc.
Durable, and long service life
1. High Speed Steel (HSS) Construction

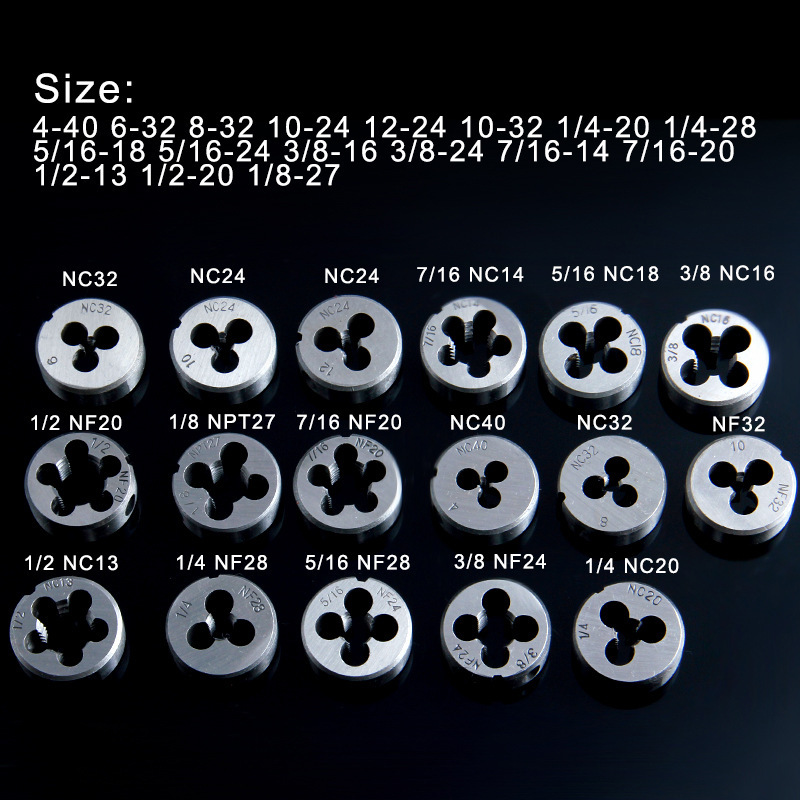

2. Wide range of sizes
3.The kit can include different types of taps such as tapers, plugs and bottom taps to meet various threading requirements.
4. Adjustable dies

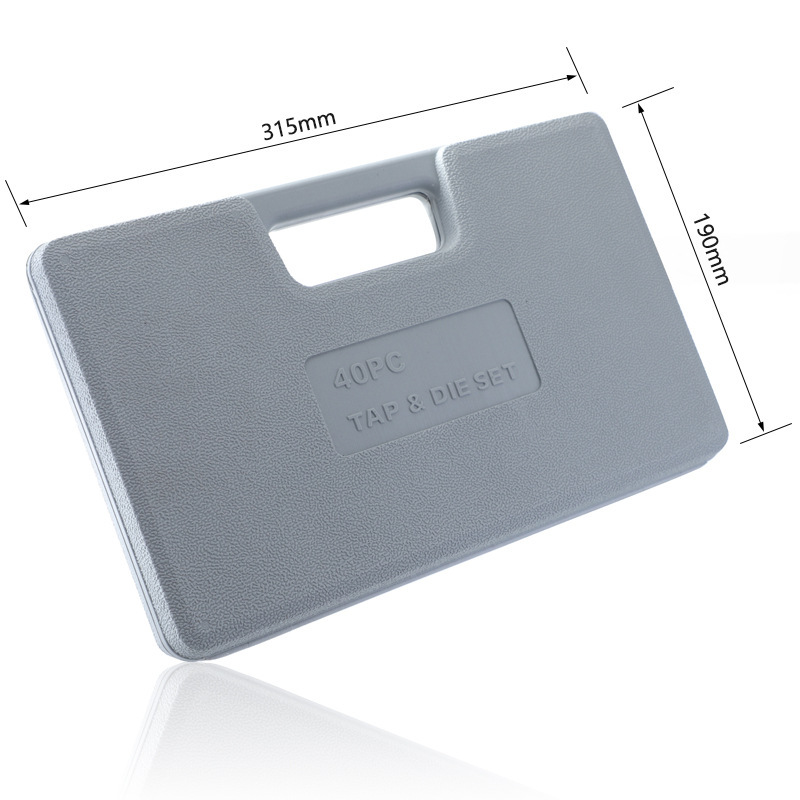

5. Storage Case.
6. Precision Threads
7. This kit works with a variety of materials, including steel, aluminum, brass, and other metals.
8. Compatibility

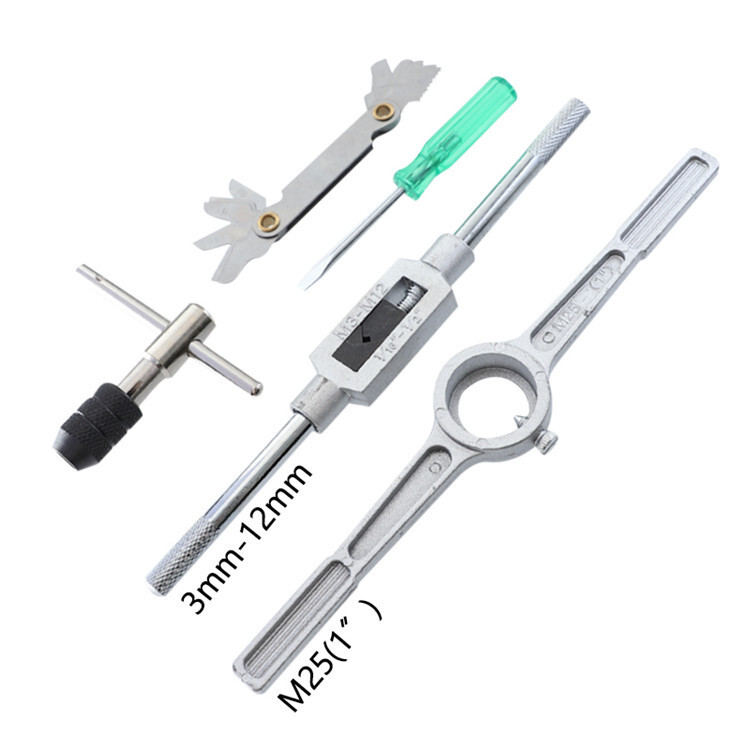

9. Additional accessories

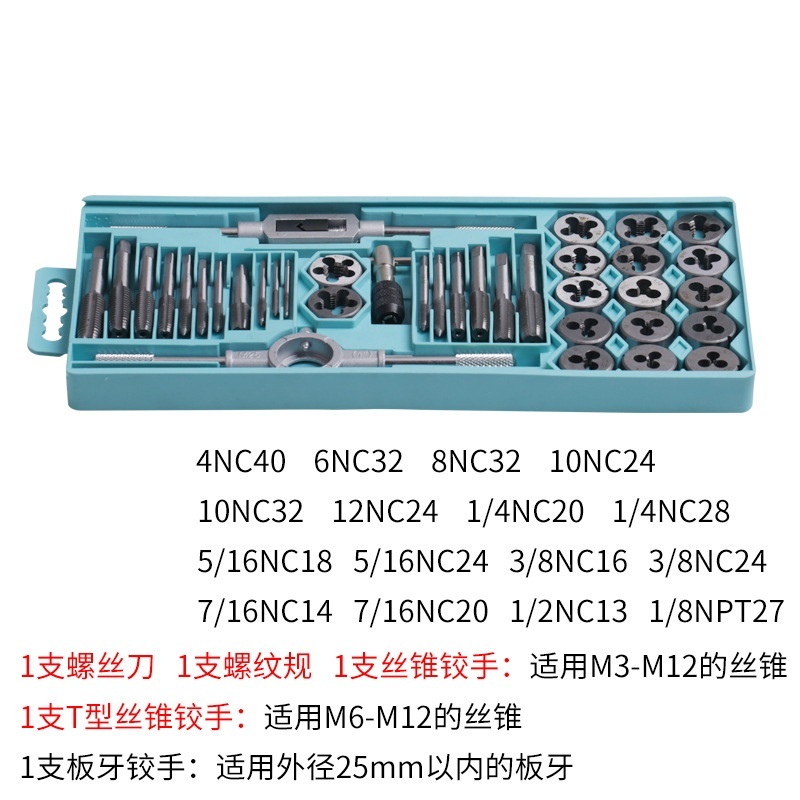

Overall, the 40-piece HSS tap and die set provides a wide choice of tools for cutting internal and external threads, making it a valuable addition to workshops, automotive garages and industrial environments.
| Items | Specification | Standard |
| TAPS | Straight fluted hand taps | ISO |
| DIN352 | ||
| DIN351 BSW/UNC/UNF | ||
| DIN2181 | ||
| Straight fluted machine taps | DIN371/M | |
| DIN371/W/BSF | ||
| DIN371/UNC/UNF | ||
| DIN374/MF | ||
| DIN374/UNF | ||
| DIN376/M | ||
| DIN376/UNC | ||
| DIN376W/BSF | ||
| DIN2181/UNC/UNF | ||
| DIN2181/BSW | ||
| DIN2183/UNC/UNF | ||
| DIN2183/BSW | ||
| Spiral fluted taps | ISO | |
| DIN371/M | ||
| DIN371/W/BSF | ||
| DIN371/UNC/UNF | ||
| DIN374/MF | ||
| DIN374/UNF | ||
| DIN376/M | ||
| DIN376/UNC | ||
| DIN376W/BSF | ||
| Spiral pointed taps | ISO | |
| DIN371/M | ||
| DIN371/W/BSF | ||
| DIN371/UNC/UNF | ||
| DIN374/MF | ||
| DIN374/UNF | ||
| DIN376/M | ||
| DIN376/UNC | ||
| DIN376W/BSF | ||
| Roll tap/Forming tap | ||
| Pipe thread taps | G/NPT/NPS/PT | |
| DIN5157 | ||
| DIN5156 | ||
| DIN353 | ||
| Nut taps | DIN357 | |
| Combined drill and tap | ||
| Taps and die set |
With material applications in mind, Shanghai Easydrill Industrial Co.,Ltd, long a leader in high speed steel, cobalt, and carbide drill bits for metal, features a complete line of drill bits and hole cutting solutions for metal, wood, concrete, masonry,glass and other surfaces. Drilling, hole cutting, reaming, countersinking, tapping, milling, sawing, and deburring are comprehensively covered with Easydrill.
