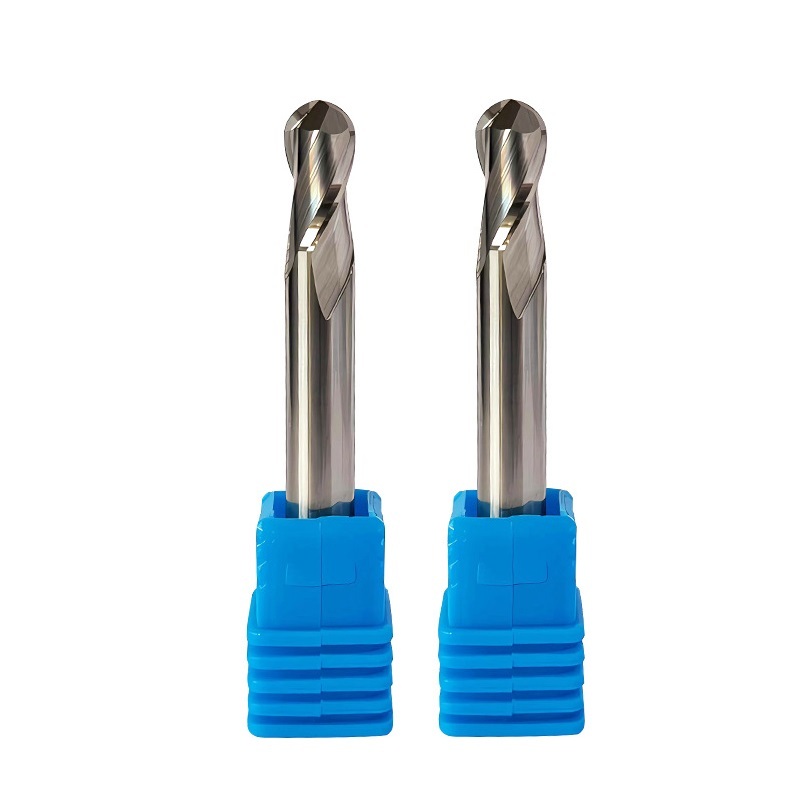

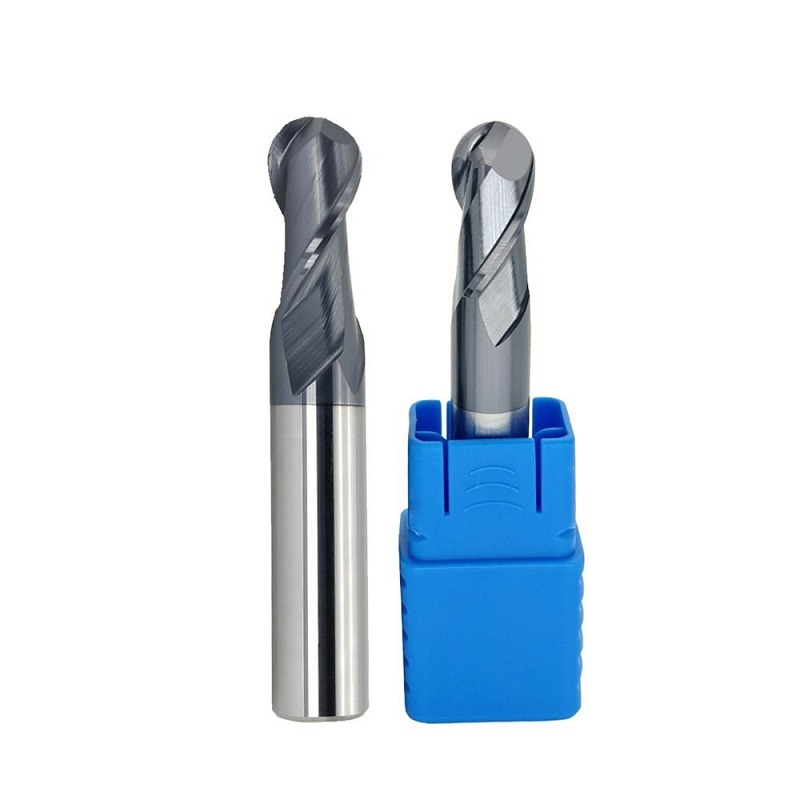

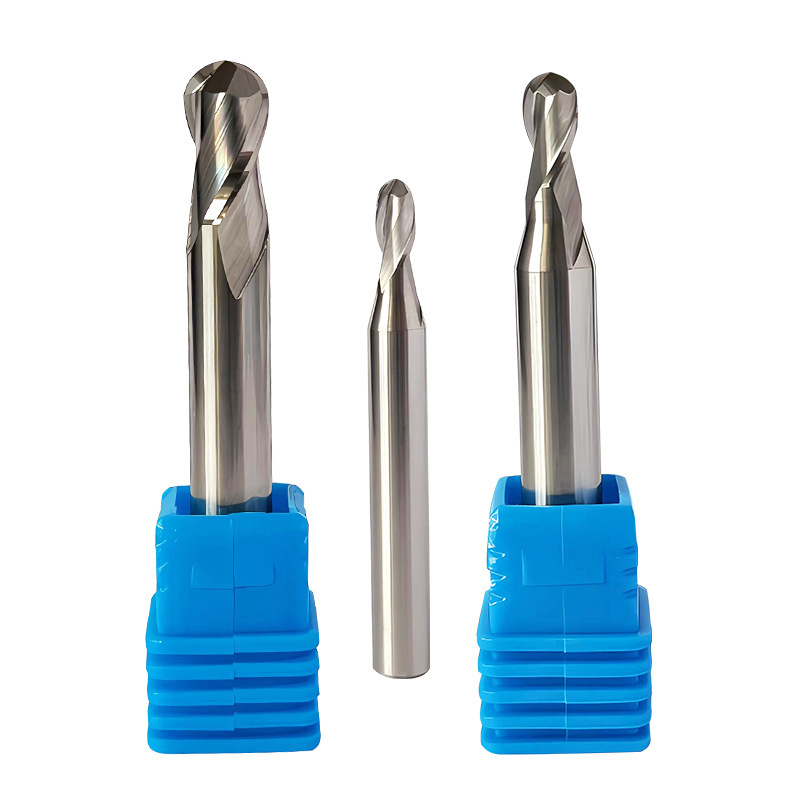

Ball nose Tungsten Carbide End Mill for aluminium

• Tungsten carbide material
• Used for Carbide steel, Alloy steel, Tool steel
• Diameter: R0.5-R6

Technical Data

• Type: Ball nose tungsten carbide end mill (aluminum-specific); shank diameter 4–12mm, cutting diameter equal to shank, overall length 50–100mm.
• Core specs: 2/4 flutes; 30°/45° helix angle; AlTiN coating; solid carbide (HRA 91–93); right-hand cut.
• Compatibility: Fits CNC routers/milling machines; recommended speed 10000–30000rpm; optimized for aluminum/alloy.

Key Advantages

• Ball nose design enables smooth contouring, 3D shaping, and fillet machining on aluminum.
• Aluminum-specific coating reduces adhesion (no built-up edge) and friction for fast cutting.
• Solid carbide ensures rigidity; optimized helix improves chip evacuation, avoiding clogging.
• Precise machining with smooth surface finish, ideal for aluminum parts, aerospace components, DIY projects.
