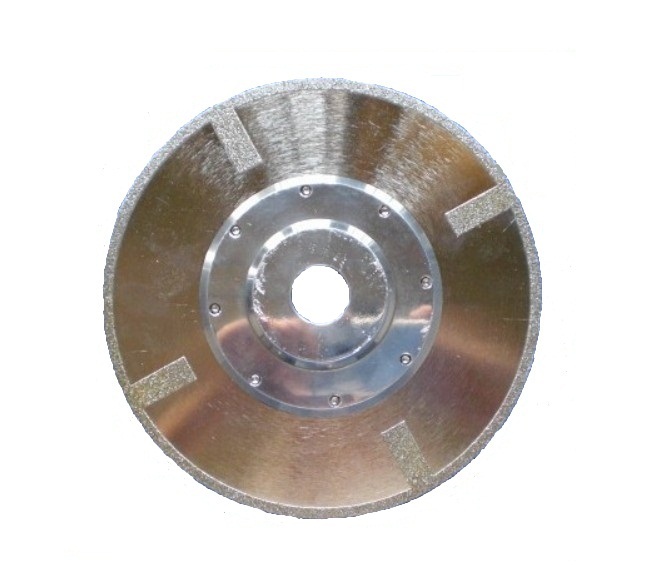

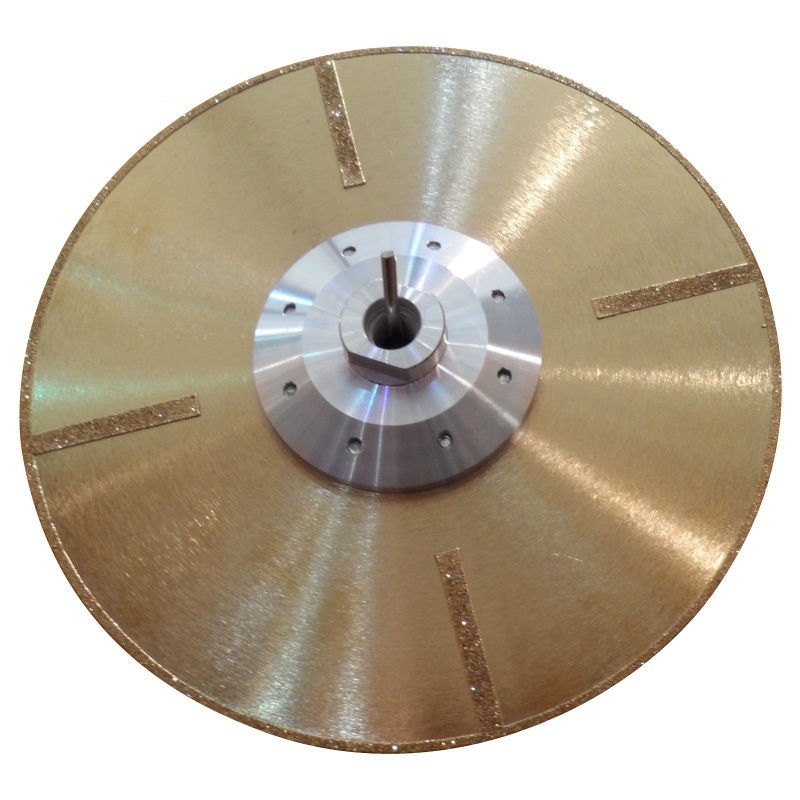

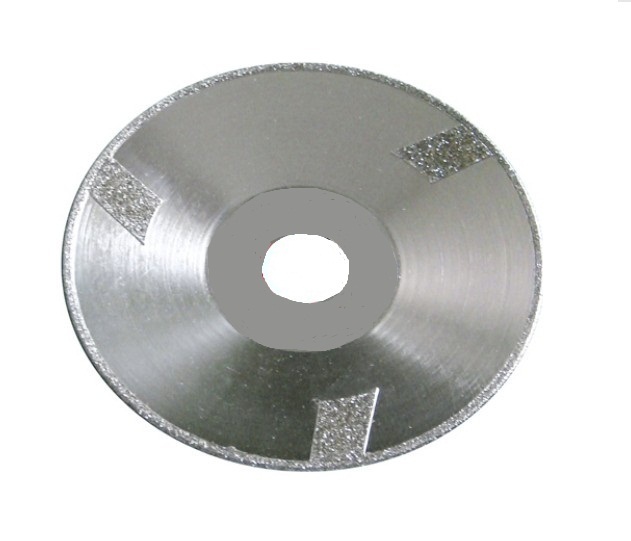

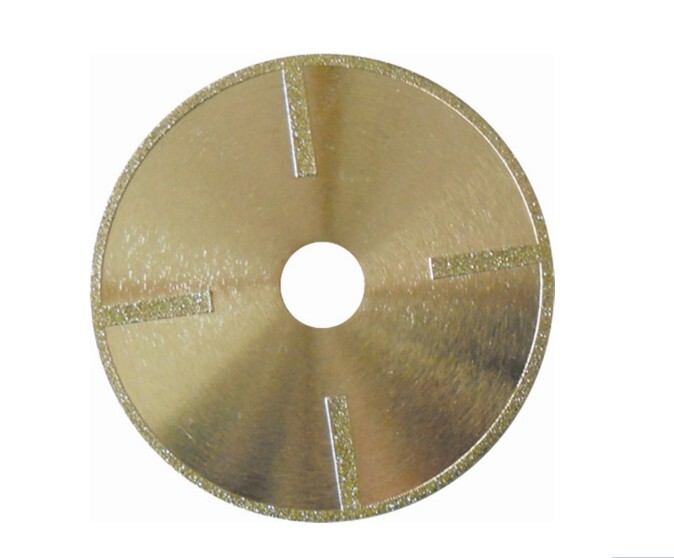

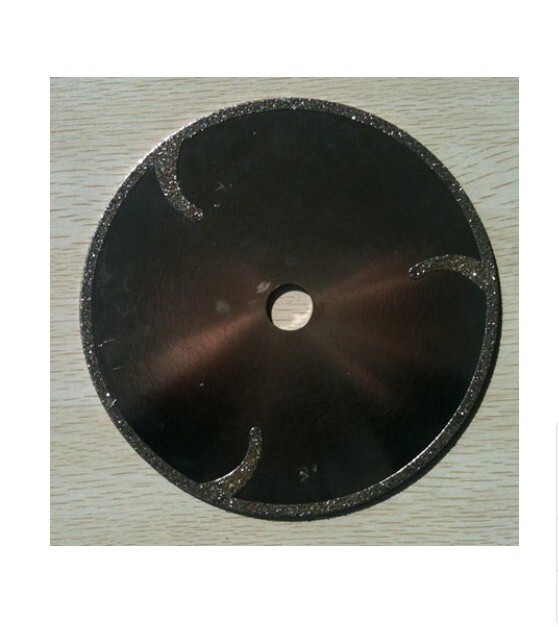

Electroplated Diamond Saw Blade with Protection Segments

Technical Data

• Structure: Continuous rim design + diamond electroplated cutting edge + protection segments
• Diameters: 105-350mm (4″-14″) standard sizes
• Thickness: 0.3-1.0mm (ultra-thin for precision)
• Arbor hole: 16mm, 20mm, 22.23mm, 25.4mm (7/8″)
• Protection segments: T-shaped/triangle design, extending beyond cutting edge
• Material: High-strength steel core + electroplated diamond layer
• Diamond grit: 60-150 mesh (varies by application)
• Diamond concentration: 50%-70% (soft materials) or 80%-120% (hard materials)
• Coating: Single-layer electroplated nickel/cobalt bond
• Cutting modes: Wet cutting standard, some models for dry use
• Applications: Ceramic tiles, porcelain, glass, fiberglass, marble (light duty)

Advantages

• Ultra-smooth cuts: Continuous rim provides chip-free, precise edges with minimal chipping
• Protection segments: Prevent damage to blade core, extend lifespan by 30-50%
• Precision cutting: Ideal for delicate materials where edge integrity matters
• Low heat generation: Electroplated diamonds cut efficiently with minimal thermal impact.
