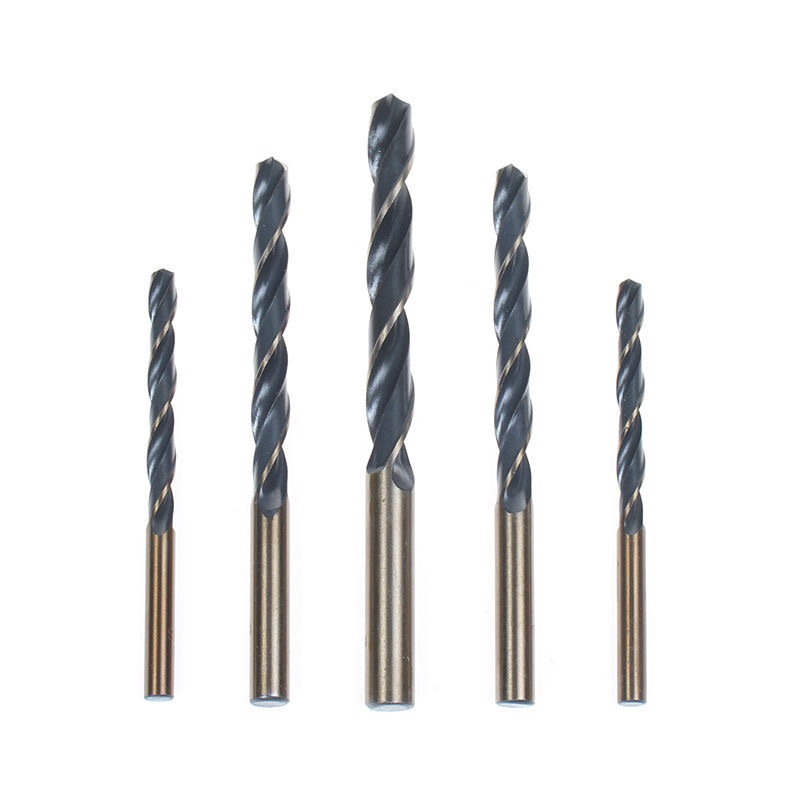

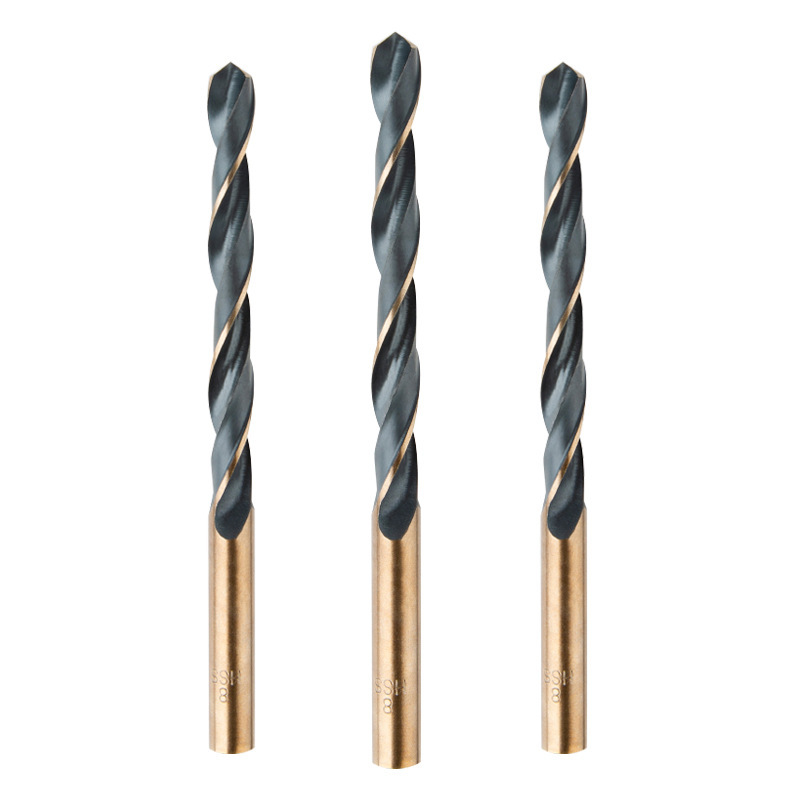

Forged HSS Twist Drill Bits

Technical Data

1. Material & Hardness: Crafted from HSS like M2 or M35 (with cobalt). The forging process boosts its hardness to 63 – 66HRC, and some have black oxide, amber-black, or bright finishes.
2. Dimensions: Complies with DIN 338. Diameter ranges 1.0 – 20mm; straight shank design. Point angles are 118° as standard or 135° split point. It usually has 2 spiral flutes.
3. Other Specs: Adopts right-hand cutting. Overall lengths are around 70 – 135mm, and edge lengths 39 – 78mm, suiting small-to-medium hole drilling.

Advantages

1. Forging enhances HSS’s toughness and density, making the bit more impact-resistant and less likely to break than non-forged ones, with a longer service life.
2. Precise 118°/135° points enable self-centering, avoiding drilling deviation. Spiral flutes optimize chip evacuation and reduce clogging.
3. Coatings like black oxide reduce friction, heat buildup and corrosion, while bright finishes improve chip flow for soft materials.
4. Low cost and easy regrinding. It can be reused multiple times after sharpening, fitting small-batch production and cost control.

Areas of Application

1. Soft & Common Metals: Ideal for drilling aluminum, brass, mild steel and cast iron, widely used in general metal fabrication and hardware processing.
2. Light Materials Processing: Suitable for wood, PVC, acrylic and polyboard, applied in woodworking and DIY home improvement like furniture assembly.
3. General Industrial & Maintenance: Used on hand drills, pillar drills and CNC machines. Fits machinery repair, 3C product part drilling and small-batch production of auto accessories.
