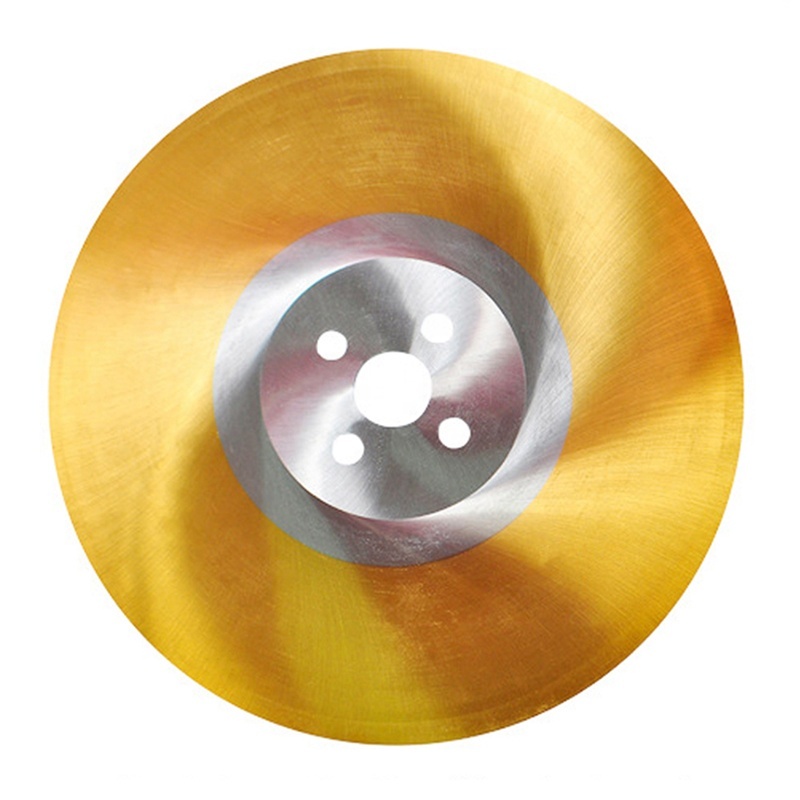

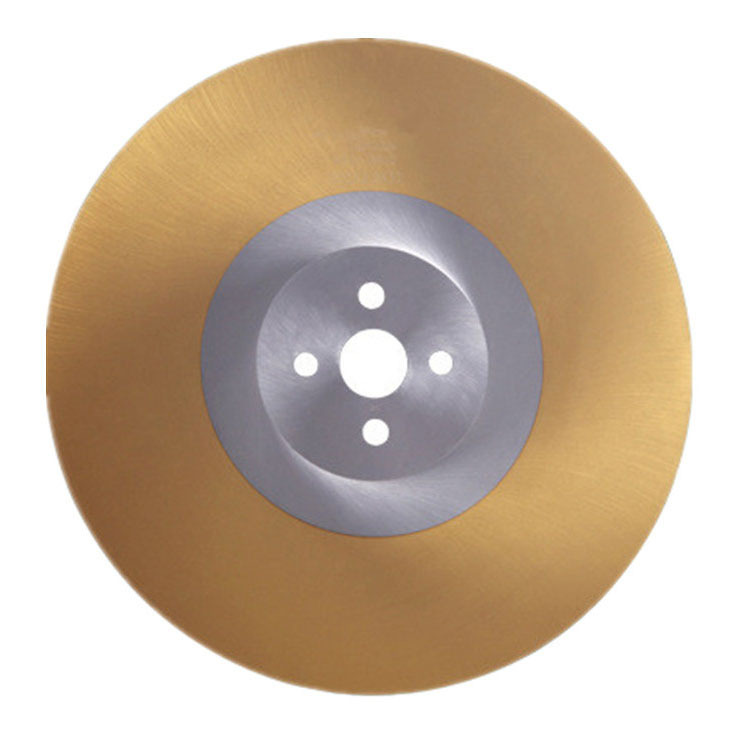

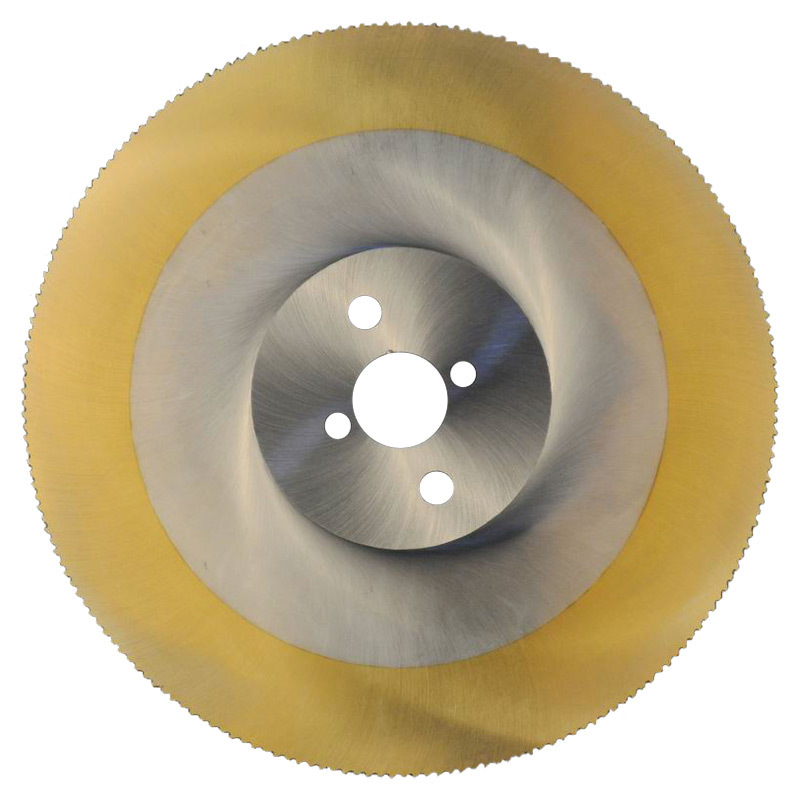

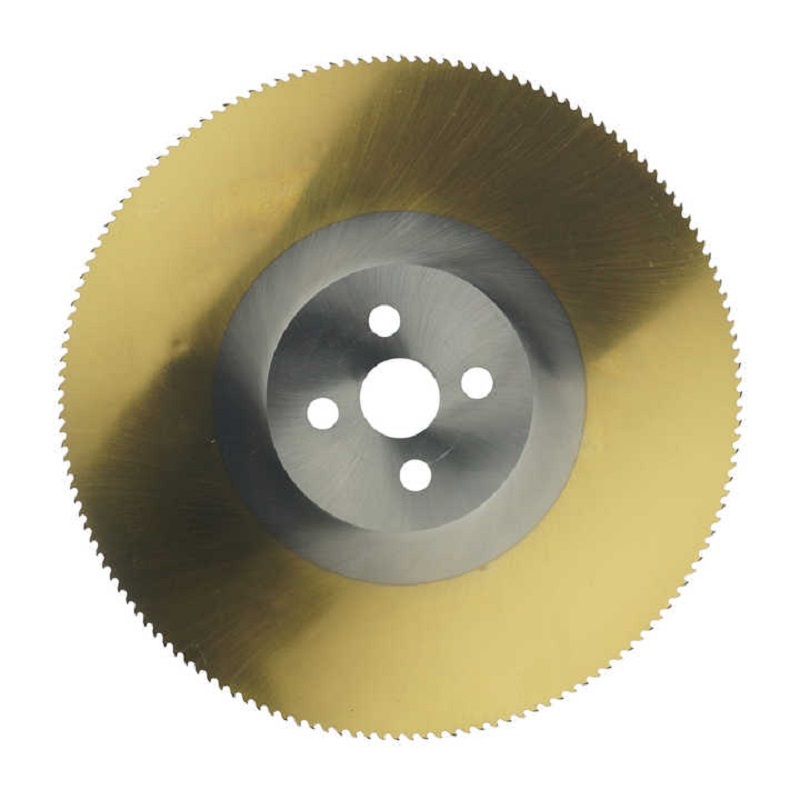

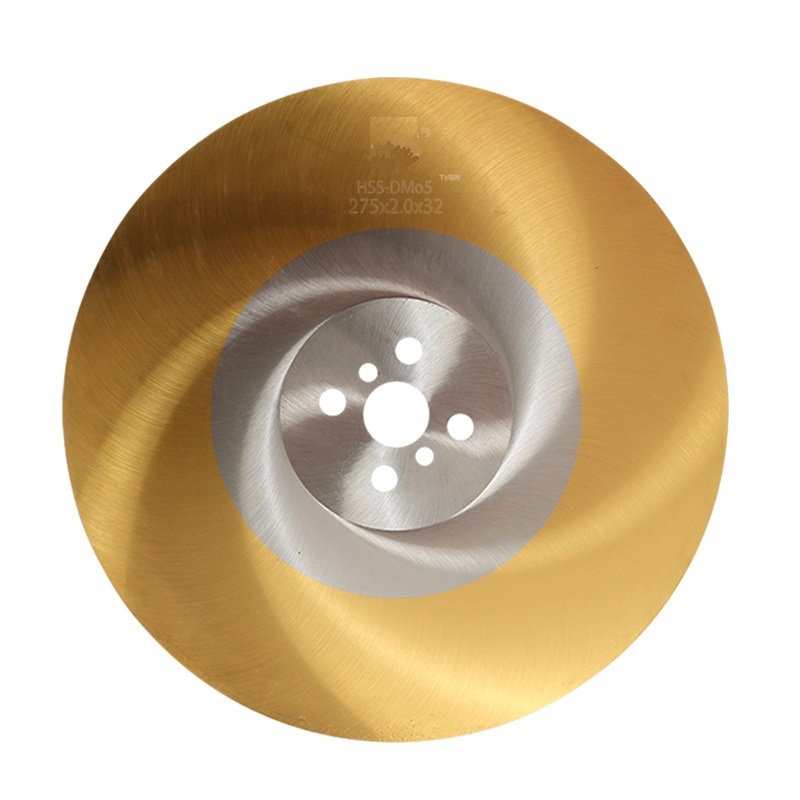

HSS Circular Saw Blade For Metal Cutting

• HSS M2 material
• Diameter Size: 60mm-450mm
• Thickness: 1.0mm-3.0mm
• Suitable for cutting iron, steel, copper, aluminium etc
• Tin coated surface

Technical DataMaterial & Coating

• Base Material: HSS M2 (W6Mo5Cr4V2), hardness HRC 63-66, heat resistance up to 550°C
• TItian Coating:

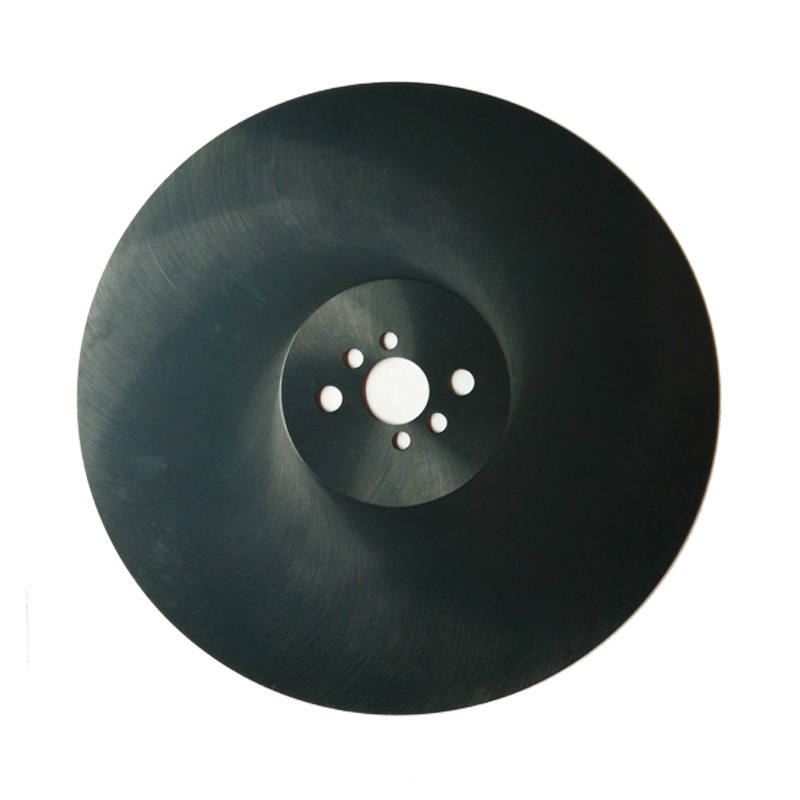

• Hardness: 2500HV (TiAlN), 800-900HV (black oxide)
• Friction Coefficient: 0.4 (TiAlN), 0.65 (black oxide)
• Thickness: 2-4μm (TiAlN), 5-10μm (black oxide)
• Max. Temp: 600°C (TiAlN), 300°C (black oxide)

Dimensions & Specifications

• Diameter Range: 22-600mm (standard), 20-1000mm (custom)
• Thickness: 0.5-5mm (dependent on diameter)
• Bore Size: 6-100mm (common: 20, 25, 32, 50mm)
• Tooth Count: 18-300T (dependent on diameter and application)
• Tooth Form: Alternating bevel (BW), inverted trapezoidal, standard
• Tolerance: Diameter ±0.1mm, thickness ±0.02mm

Cutting Parameters

• Cutting Speed:

• Steel: 20-60m/min
• Stainless: 10-30m/min
• Aluminum/Copper: 50-120m/min

Feed Rate: 0.05-0.3mm/toothMax. Material Thickness: Up to 100mm (dependent on blade size)
