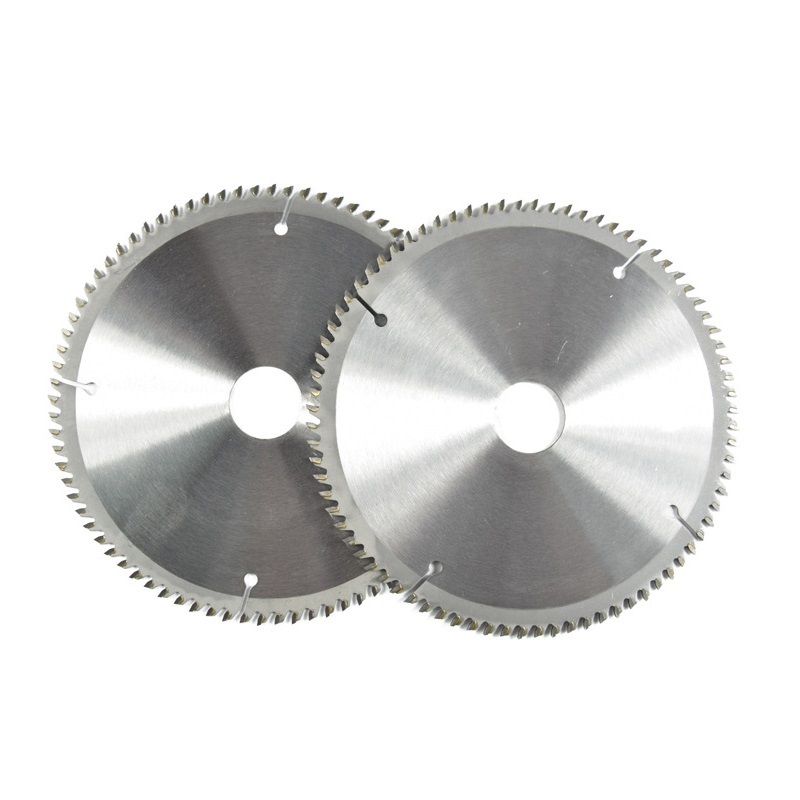

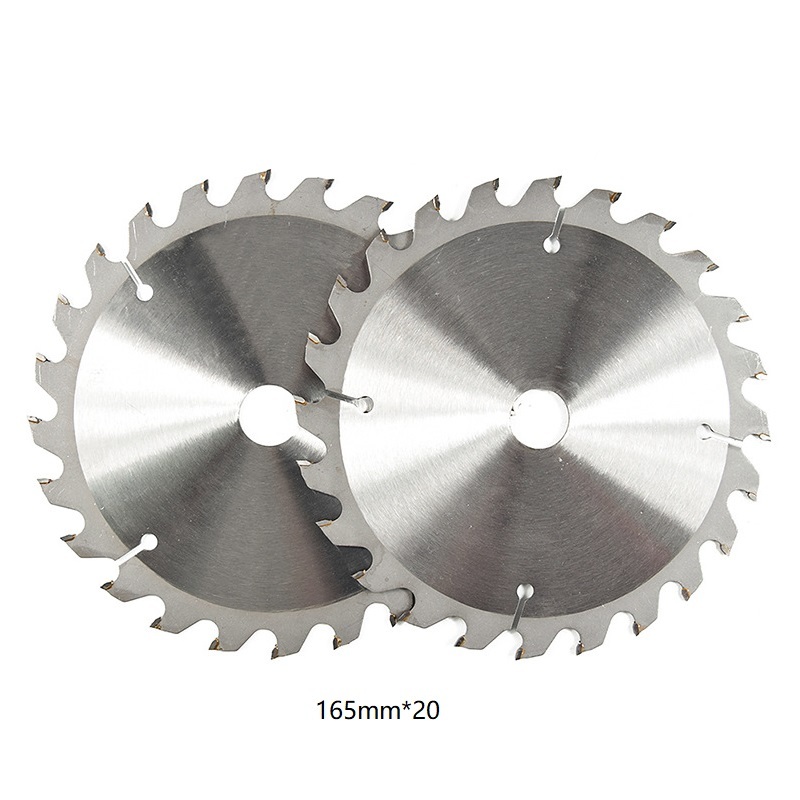

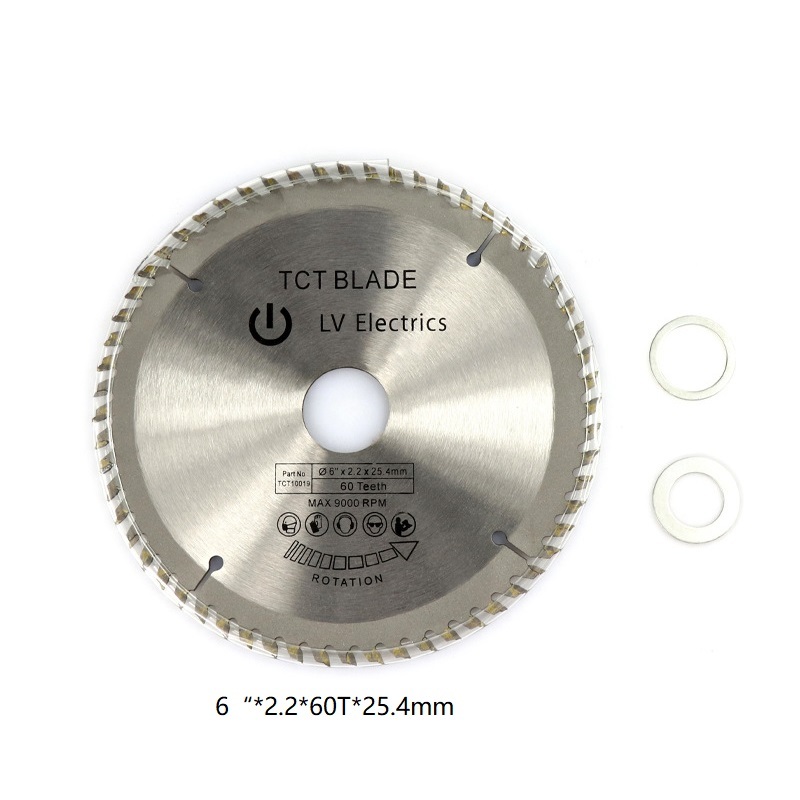

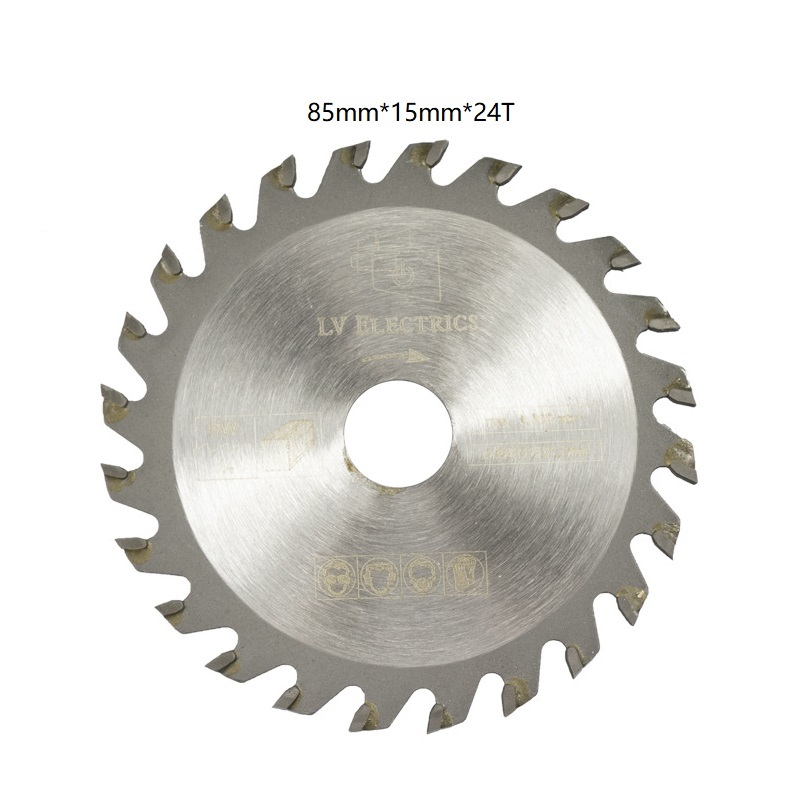

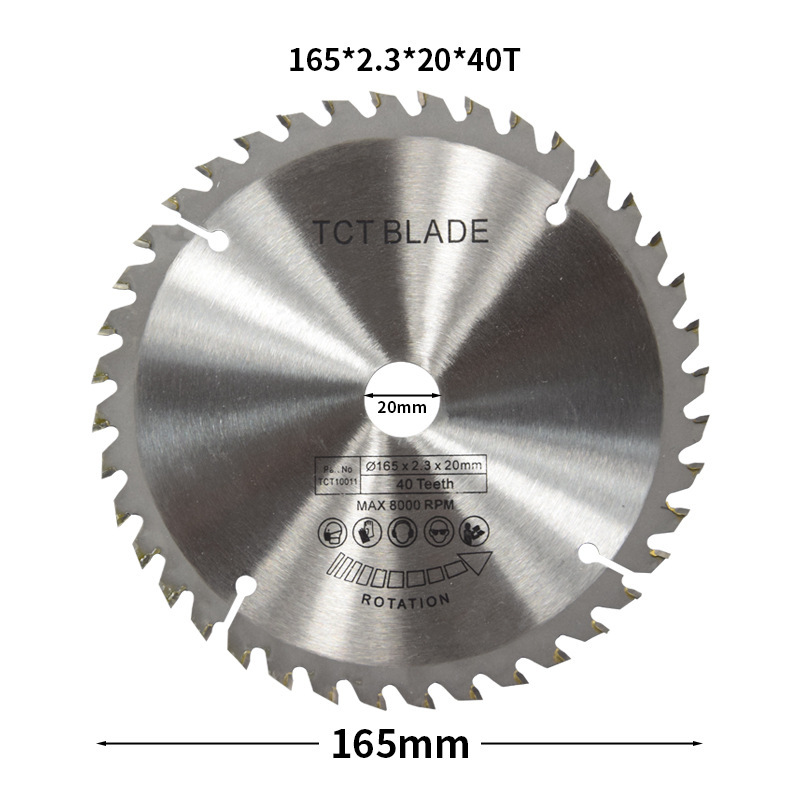

Tungsten carbide tipped cutting blade for wood

Technical Data :

• Composition: High-grade tungsten carbide tips (YG8-YG15 grades) brazed onto 45#/65Mn/75Cr1 carbon steel plate
• Standard Sizes:

• Diameters: 115-600mm (4-24″)
• Arbor hole: 20-30mm (standard for industrial saws)
• Thickness: 1.2-4.0mm (varies by diameter)

Tooth Features:

• Tooth count: 24-120 teeth (more teeth=smoother cuts)
• Tooth geometry: Alternating top bevel (ATB), raker, or flat top

Cutting Parameters:

• Max speed: 30-50m/s (varies by diameter and machine)
• Optimal RPM: 3000-6000 (dependent on diameter)

Special Features: Laser-cut expansion slots, anti-vibration vents, PTFE coating (optional)Applications: Hardwood, softwood, plywood, MDF, chipboard, laminated panels

Advantages :

• 5-8× Longer Life: Tungsten carbide tips maintain sharpness 5-8 times longer than HSS blades, reducing replacement costs
• Superior Cutting Quality: Produces clean, splinter-free edges with minimal tear-out, reducing post-processing
• Heat Resistance: Maintains hardness at high temperatures, preventing deformation during prolonged use
• High Efficiency: Cuts 20-30% faster with less effort, reducing energy consumption
• Stable Operation: Precision manufacturing and special slots minimize vibration, ensuring straight cuts
• Versatility: One blade handles multiple wood types and thicknesses
