3K 200g Plain Weave Carbon Fiber Cloth – High Strength, Lightweight Composite Fabric

Key Features

• Premium 3K Carbon Fiber Material: Woven with 3K carbon fiber bundles (3000 filaments per strand), ensuring excellent tensile strength and modulus. The high-quality carbon fiber yarn guarantees consistent performance and long-term durability[7].

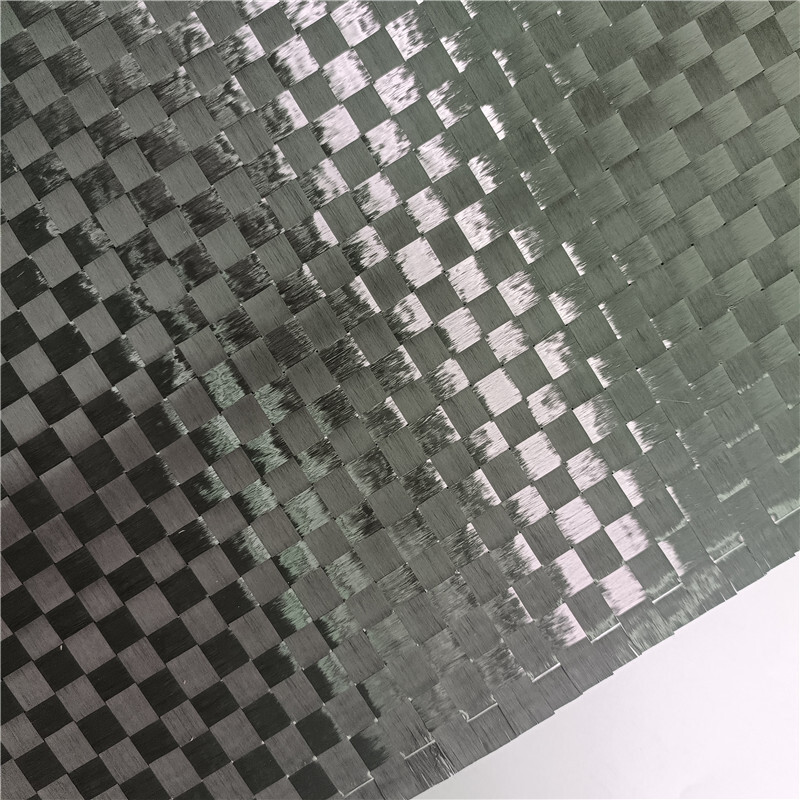

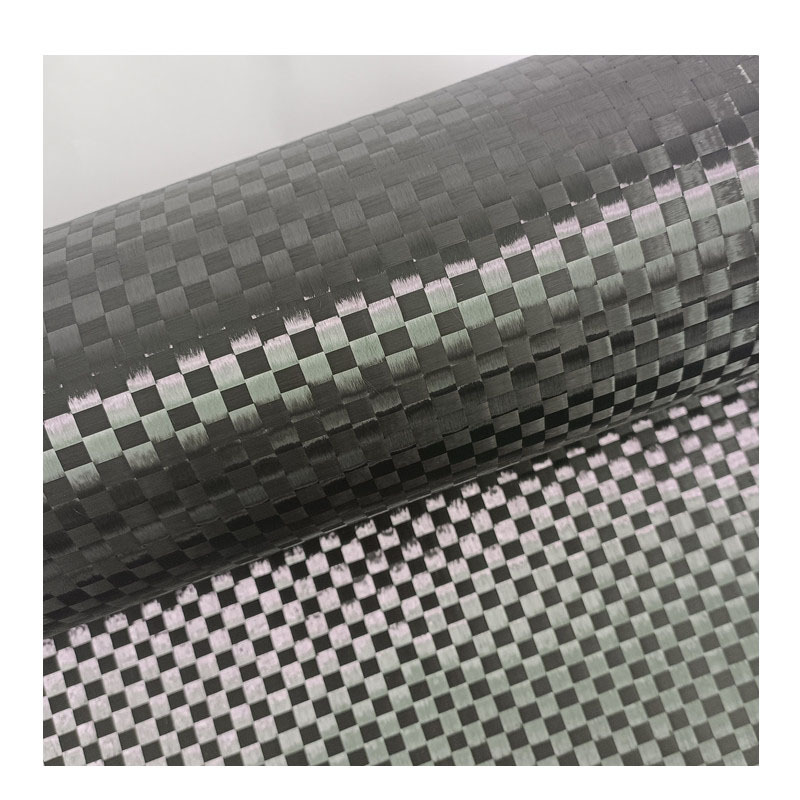

• Classic Plain Weave Pattern: 1×1 plain weave structure creates a tight, uniform grid pattern with numerous interlacing points, making the fabric firm, wear-resistant, and flat. It offers better dimensional stability and is less likely to distort during processing compared to twill weave alternatives.
• Optimal Areal Weight: 200g/m² areal weight provides an ideal balance of strength and lightness, suitable for multiple layers lamination or single-layer skinning applications. It is lightweight enough to reduce overall product weight while maintaining structural integrity[5].
• Excellent Compatibility: Fully compatible with epoxy, polyester, and vinyl ester resins, supporting wet-lay, vacuum bagging, and resin infusion manufacturing processes. It bonds tightly with resins to form high-strength composite parts.
• Superior Physical Properties: Features low thermal expansion coefficient, high temperature resistance, corrosion resistance, and UV stability. It is also electrically conductive and offers excellent shock absorption and fatigue resistance.

• Customizable Specifications: Available in custom widths (10cm-150cm) and roll lengths, supporting weave lock customization to meet specific project requirements. We can also provide CNC cutting services for precise shapes and sizes.

  Technical Specifications (Core)

  Specification	Value
  Fiber Tow Size	3K (3000 Filaments per Bundle)
  Weave Pattern	1×1 Plain Weave
  Areal Weight	200g/m² (±5g/m²)
  Tensile Strength	≥4120MPa (Fiber)
  Compatible Resins	Epoxy, Polyester, Vinyl Ester

  Main Applications

  Aerospace & defense, automotive & motorsports, sports equipment, industrial & construction, consumer electronics & decorative products.
